Multi Palco InOut minimal and connected pole
Overview
- Urban light system, designed to use LED lamps.
- Installation on pre-perforated poles with a minimal design flange and single or double arms for Ø102 - Ø120mm cylindrical-conical poles.
- Pre-perforated cylindrical-conical poles with the following holes: 2 holes with brass inserts for installing the flange and 1 hole with a rubber gasket for the installed product cable to pass through. Vertical, horizontal and 60° and 90° helix holes are also available.
- The poles are supplied pre-perforated, so their zinc and original paint coatings are integral and able to maintain a high level of rust resistance over time.
- Positioning the power supply units inside the panel simplifies maintenance and reduces costs.
- The cylindrical-conical poles are supplied with two small opening panels that allow an IP68 box containing the BLE-DALI interface to be installed as well as a circuit that protects against overvoltages and a wiring PG (for Ø102mm poles and Ø120mm poles).

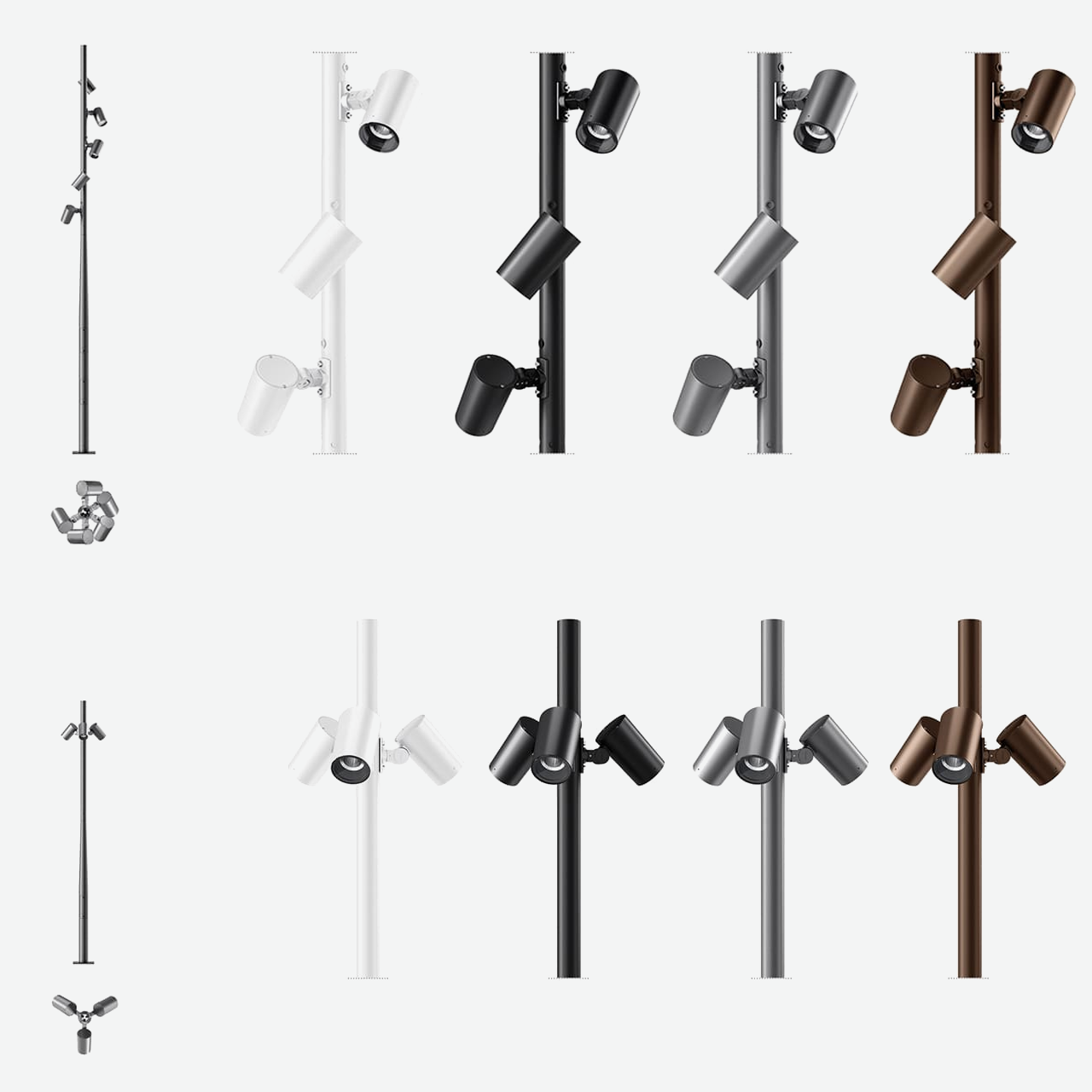

- The cylindrical-conical poles are available in heights of 5, 7, 9 and 12m both in a version for burial and a version with a plate in White, Black, Rust Brown and Grey.
Protection Ratings
-
Class II -
Class III -
IP66
Mechanical Resistance
-
Protected against 2 J shocks
Certifications & Approvals
-
BVB Byggvarube- dömningen -
CE -
UK Conformity Assessed -
BIS -
QCERT
Key Features
-
Luminaire angle relative to the horizontal plane -
Luminaire rotation about the vertical axis -
Graduated scale and mechanical aiming lock -
Opti Beam high-performance reflectors
